DataLoader guide

Install Grain and tutorial dependencies

!pip install grain tfds-nightly opencv-python matplotlib orbax-checkpoint

import cv2
import orbax.checkpoint as ocp
import grain.python as grain
import matplotlib.pyplot as plt
import numpy as np

import os
os.environ.pop('TFDS_DATA_DIR', None)
import tensorflow_datasets as tfds

Concepts

The DataLoader class is responsible for reading and transforming input data records. Users need to iterate through the DataLoader to get output elements.

The DataLoader uses a Sampler to determine which records to read next, a DataSource to read the records, and applies Transformations to the read records to produce output elements. We present these concepts in the following sections.

Sampler

A Sampler is responsible for determining which records to read next. This involves applying global transformations such as shuffling records, repeating for multiple epochs and sharding across multiple machines. The sampler is an Iterator which produces metadata objects containing the following information:

• index: a monotonically increasing number, unique for each record. It keeps track of the pipeline process and will be used for checkpointing.

• record_key: a reference to the record in the serialized file format.

• rng: a per-record Random Number Generator to apply random transformations.

Grain provides an IndexSampler implementation, which we explore below.

# Setting `num_records` to 5 to limit results.
# For full dataset, set to `len(data_source)`.
index_sampler_example = grain.IndexSampler(
    num_records=5,
    num_epochs=2,
    shard_options=grain.ShardOptions(
        shard_index=0, shard_count=1, drop_remainder=True),
    shuffle=True,
    seed=0)

# Iterator is consumed.
for record_metadata in index_sampler_example:
  print(record_metadata)

# Create new iterator.
index_sampler = grain.IndexSampler(
    num_records=5,
    num_epochs=2,
    shard_options=grain.ShardOptions(
        shard_index=0, shard_count=1, drop_remainder=True),
    shuffle=True,
    seed=0)

RecordMetadata(index=0, record_key=0, rng=Generator(Philox))
RecordMetadata(index=1, record_key=4, rng=Generator(Philox))
RecordMetadata(index=2, record_key=1, rng=Generator(Philox))
RecordMetadata(index=3, record_key=2, rng=Generator(Philox))
RecordMetadata(index=4, record_key=3, rng=Generator(Philox))
RecordMetadata(index=5, record_key=1, rng=Generator(Philox))
RecordMetadata(index=6, record_key=2, rng=Generator(Philox))
RecordMetadata(index=7, record_key=3, rng=Generator(Philox))
RecordMetadata(index=8, record_key=0, rng=Generator(Philox))
RecordMetadata(index=9, record_key=4, rng=Generator(Philox))

Data source

A data source is responsible for reading indvidual records from underlying files / storage system. We provide the following data sources:

• ArrayRecordDataSource: reads records from ArrayRecord files.

• tfds.data_source: data source for TFDS datasets without a TensorFlow dependency.

Below, we show an example using a TFDS data source, but using other data sources should be similar.

TFDS Data source

# We use a small version of ImageNet data to spare disk and network
# usage for the demo. Prefer "imagenet2012"'s "train" split for a
# complete dataset.
source = tfds.data_source("imagenet_a", split="test")

print(f"# records: {len(source)}")

print(f"First record:\n{source[0]}")

# records: 7500
First record:
{'file_name': b'0.000296_bee _ bee_0.51374936.jpg', 'image': array([[[  0,   2,   6],
        [  0,   3,   7],
        [  0,   3,   9],
        ...,
        [176, 160,   3],
        [178, 166,   4],
        [179, 168,   0]],

       [[  0,   2,   6],
        [  0,   2,   6],
        [  0,   3,   9],
        ...,
        [183, 165,   5],
        [186, 171,   6],
        [186, 174,   4]],

       [[  0,   1,   8],
        [  0,   1,   8],
        [  0,   2,  11],
        ...,
        [193, 171,   7],
        [195, 177,   7],
        [196, 179,   5]],

       ...,

       [[180,  57,   0],
        [182,  65,   0],
        [183,  75,   0],
        ...,
        [183,  45,   0],
        [183,  40,   0],
        [183,  35,   0]],

       [[181,  61,   0],
        [184,  69,   2],
        [187,  81,   5],
        ...,
        [181,  42,   0],
        [179,  36,   0],
        [179,  29,   0]],

       [[183,  63,   0],
        [186,  71,   4],
        [188,  85,   8],
        ...,
        [179,  40,   0],
        [177,  33,   0],
        [177,  27,   0]]], dtype=uint8), 'label': 549}

Transformations

Grain Transformations represent transformations applied to input elements. We offer ready-to-use: BatchTransform and the following transformations in form of abstract classes:

• MapTransform

• RandomMapTransform

• FilterTransform

You’d need to create your concrete transformation by inheriting above classes.

Note:

1. Since Grain uses Python multiprocessing to parallelize work, transformation must be picklable, so they can be sent from the main process to the workers.

2. When using BatchTransform the batch_size is the global batch size if it is done before sharding, if it is done after sharding it is the batch size per host (this is typically the case when using IndexSampler with DataLoader).

class ResizeAndCrop(grain.MapTransform):

  def map(self, element: dict[str, np.ndarray]) -> dict[str, np.ndarray]:
    image = element["image"]
    image = cv2.resize(image, dsize=(256, 256), interpolation=cv2.INTER_LINEAR)
    image = image[:224, :224]
    element["image"] = image
    return element

transformations = [ResizeAndCrop()]

DataLoader

DataLoader is the glue between Sampler, DataSource and transformations. In addition, it is responsible for launching children processes to parallelize the processing of the input pipeline, collecting output elements from these processes and gracefully shutting them down at exit. Users need to iterate through the DataLoader to get processed elements (typically the output batches).

For quick experimentation, use worker_count=0, to run everything in a single process, saving the time to setup workers. When going to real training / evaluation, increase the number of workers to parallelize processing.

data_loader = grain.DataLoader(
    data_source=source,
    operations=transformations,
    sampler=index_sampler,
    worker_count=0)

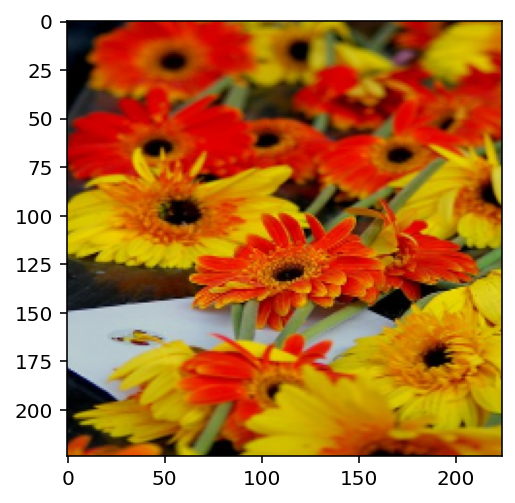

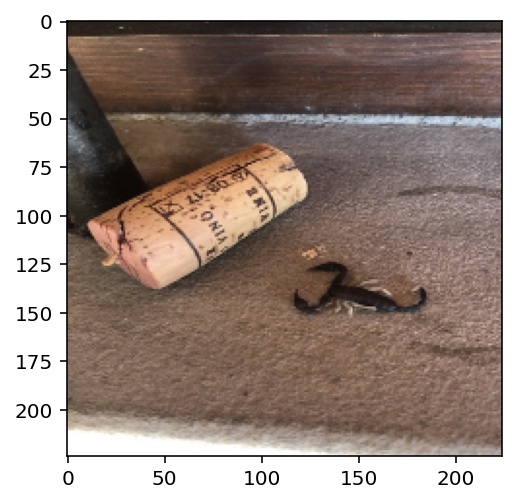

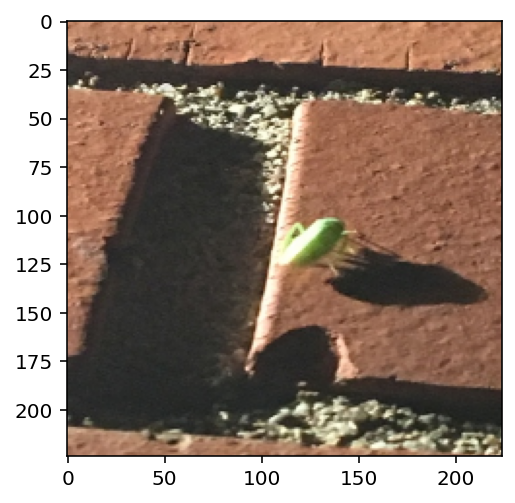

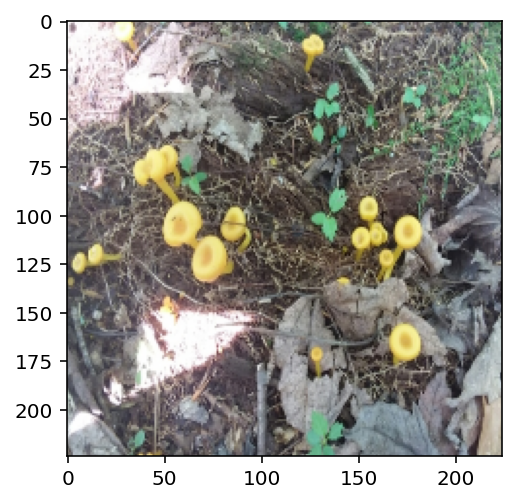

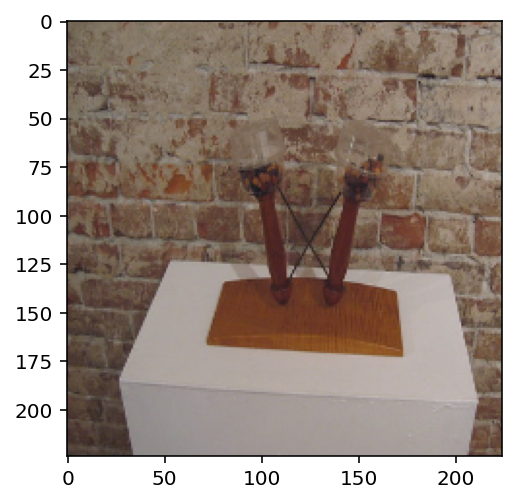

for element in data_loader:
  fig = plt.figure
  plt.imshow(element["image"])
  plt.show()

Checkpointing

We provide PyGrainCheckpointHandler to checkpoint the iterator returned by Grain. It is recommended to use it with Orbax, which can checkpoint both input pipeline and model and handles the edge cases for distributed training.

Integration with Orbax

Orbax contains a powerful library for checkpointing various objects - incl. Flax models and Grain DatasetIterators. This makes it easy to checkpoint the DatasetIterator together with the model in a multihost environment. Orbax will take care of synchronizing all JAX processes.

data_iter = iter(data_loader)

num_steps = 5

# Read some elements.
for i in range(num_steps):
  x = next(data_iter)
  print(i, x["file_name"], x["label"])

0 b'0.000296_bee _ bee_0.51374936.jpg' 549
1 b'0.002880_agama _ agama_0.36767894.jpg' 317
2 b"0.000069_lemon _ yellow lady's slipper_0.95938617.jpg" 947
3 b'0.021563_wine bottle _ wine bottle_0.99147403.jpg' 71
4 b'0.000246_nail _ nail_0.98317885.jpg' 641

mngr = ocp.CheckpointManager("/tmp/orbax")

!rm -rf /tmp/orbax

# Save the checkpoint
assert mngr.save(
    step=num_steps, args=grain.PyGrainCheckpointSave(data_iter), force=True)
# Checkpoint saving in Orbax is asynchronous by default, so we'll wait until
# finished before examining checkpoint.
mngr.wait_until_finished()

!ls -R /tmp/orbax

/tmp/orbax:
5

/tmp/orbax/5:
_CHECKPOINT_METADATA
default
descriptor

/tmp/orbax/5/default:
process_0-of-1.json

/tmp/orbax/5/descriptor:
descriptor.pbtxt

!cat /tmp/orbax/*/*/*.json

{
    "version": 2,
    "last_seen_indices": {
        "0": 4
    },
    "last_worker_index": -1,
    "worker_count": 0,
    "sampler": "IndexSampler(num_records=5, shard_options=ShardOptions(shard_index=0, shard_count=1, drop_remainder=True), shuffle=True, num_epochs=2, seed=0)",
    "data_source": "ArrayRecordDataSource(name=imagenet_a, split='test', decoders=None)"
}

Note: the checkpoint contains the string representation of the sampler and the data source. Checkpoints are only valid when loaded with the same sampler/data source and Grain uses the string representation for a basic check.

# Read more elements and advance the iterator
for i in range(5, 10):
  x = next(data_iter)
  print(i, x["file_name"], x["label"])

5 b"0.000069_lemon _ yellow lady's slipper_0.95938617.jpg" 947
6 b'0.021563_wine bottle _ wine bottle_0.99147403.jpg' 71
7 b'0.000246_nail _ nail_0.98317885.jpg' 641
8 b'0.000296_bee _ bee_0.51374936.jpg' 549
9 b'0.002880_agama _ agama_0.36767894.jpg' 317

# Restore iterator from previously saved checkpoint
mngr.restore(num_steps, args=grain.PyGrainCheckpointRestore(data_iter))

<grain._src.python.data_loader.PyGrainDatasetIterator at 0x10ad48823c10>

# Iterator should be set back to start from 5.
for i in range(5, 10):
  x = next(data_iter)
  print(i, x["file_name"], x["label"])

5 b"0.000069_lemon _ yellow lady's slipper_0.95938617.jpg" 947
6 b'0.021563_wine bottle _ wine bottle_0.99147403.jpg' 71
7 b'0.000246_nail _ nail_0.98317885.jpg' 641
8 b'0.000296_bee _ bee_0.51374936.jpg' 549
9 b'0.002880_agama _ agama_0.36767894.jpg' 317

Extras

In Memory Data Source

Grain supports in-memory data source for sequences that is sharable among mutiple processes.

It allows to avoid replicating the data in memory of each worker process.

Note: Currently this constrains storable values to only the int, float, bool, str (less than 10M bytes each), bytes (less than 10M bytes each), and None built-in data types.

in_memory_datasource = grain.InMemoryDataSource(range(5))

print(in_memory_datasource)
print(f"First Record Read: {in_memory_datasource[0]}")

InMemoryDataSource(name=psm_d2931804, len=5)
First Record Read: 0

data_loader = grain.DataLoader(
    data_source=in_memory_datasource,
    sampler=grain.IndexSampler(
      num_records=len(in_memory_datasource),
      num_epochs=2,
      shard_options=grain.NoSharding(),
      shuffle=True,
      seed=0),
    worker_count=5)

data_iter = iter(data_loader)

for i in range(len(in_memory_datasource) * 2):
  x = next(data_iter)
  print(x)

0
4
1
2
3
1
2
3
0
4

Per-worker ReadOptions

You can configure per-worker data source read options (for example, number of threads, prefetch buffer size) in ReadOptions.

# Following configuration makes 8*10=80 threads reading data.
data_loader = grain.DataLoader(
    data_source=source,
    sampler=grain.IndexSampler(
      num_records=len(source),
      num_epochs=2,
      shard_options=grain.NoSharding(),
      shuffle=True,
      seed=0),
    worker_count=10,
    read_options=grain.ReadOptions(num_threads=8, prefetch_buffer_size=500))
